Titiler with STAC

In our previous post, we set up TiTiler for serving Cloud-Optimized GeoTIFFs. Now let's explore how TiTiler works with STAC (SpatioTemporal Asset Catalog) - a standardized way to describe and organize geospatial data.

Prerequisites: For Python environment and TiTiler setup, check out the Getting Started with TiTiler post.

What is STAC?

STAC is like a library catalog for satellite imagery. Instead of searching through folders, you get structured JSON files that tell you:

• What: Type of imagery, bands available, resolution
• Where: Geographic location (bounding box, geometry)
• When: Capture date and time
• How: Direct links to the actual data files (assets)

Our Example Dataset

Throughout this tutorial, we'll use openly available Maxar satellite imagery from the Bay of Bengal Cyclone Mocha event:

https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json

This STAC item contains:

Asset	Description	Bands
visual	True color RGB	Red, Green, Blue
ms_analytic	Multispectral	Coastal, Blue, Green, Yellow, Red, RedEdge, NIR1, NIR2
pan_analytic	Panchromatic	Single band (high resolution)
data-mask	Valid data mask	Single band

Tip: Explore other open datasets at STAC Index to practice with different imagery

Setting Up TiTiler for STAC

Make sure your main.py includes the STAC router:

from fastapi import FastAPI
from titiler.core.factory import TilerFactory, MultiBaseTilerFactory
from starlette.middleware.cors import CORSMiddleware
from rio_tiler.io import STACReader

app = FastAPI(title="TiTiler")

app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)

# COG endpoints
cog = TilerFactory()
app.include_router(cog.router, prefix="/cog", tags=["COG"])

# STAC endpoints
stac = MultiBaseTilerFactory(reader=STACReader)
app.include_router(stac.router, prefix="/stac", tags=["STAC"])

@app.get("/")
def read_index():
    return {"message": "Welcome to TiTiler!"}

What's new for STAC: We import STACReader from rio_tiler.io and use MultiBaseTilerFactory (instead of TilerFactory) to create STAC endpoints - this factory understands how to read multiple assets from a single STAC item.

Start the server:

uvicorn main:app --reload

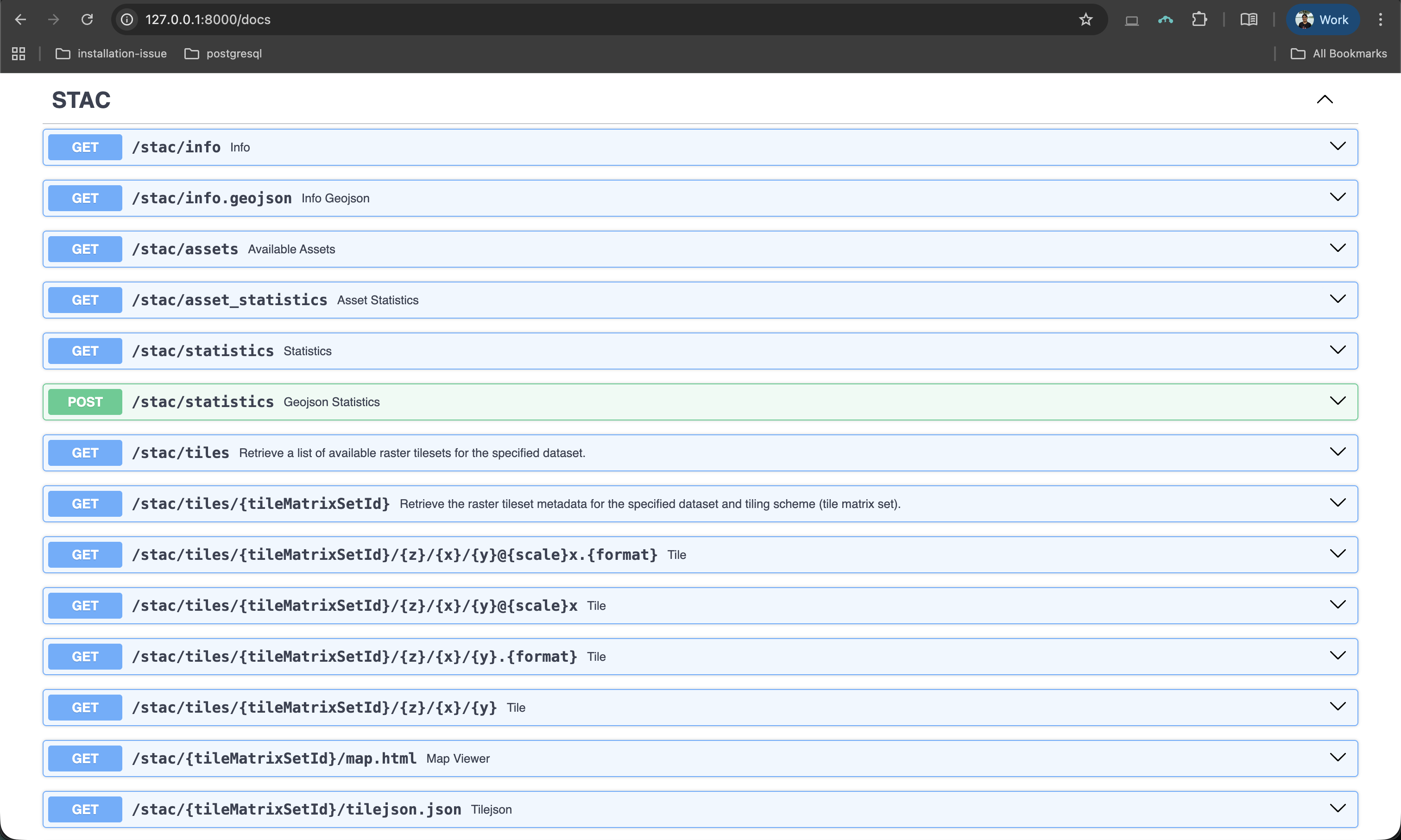

Open your browser and go to: http://127.0.0.1:8000/docs - Explore the interactive API documentation.

---

1. Getting STAC Item Info /stac/info:

Before visualizing, let's understand what's in our STAC item. The /stac/info endpoint returns metadata about available assets and their properties.

List all available assets

http://127.0.0.1:8000/stac/assets?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json

Basic Info Request

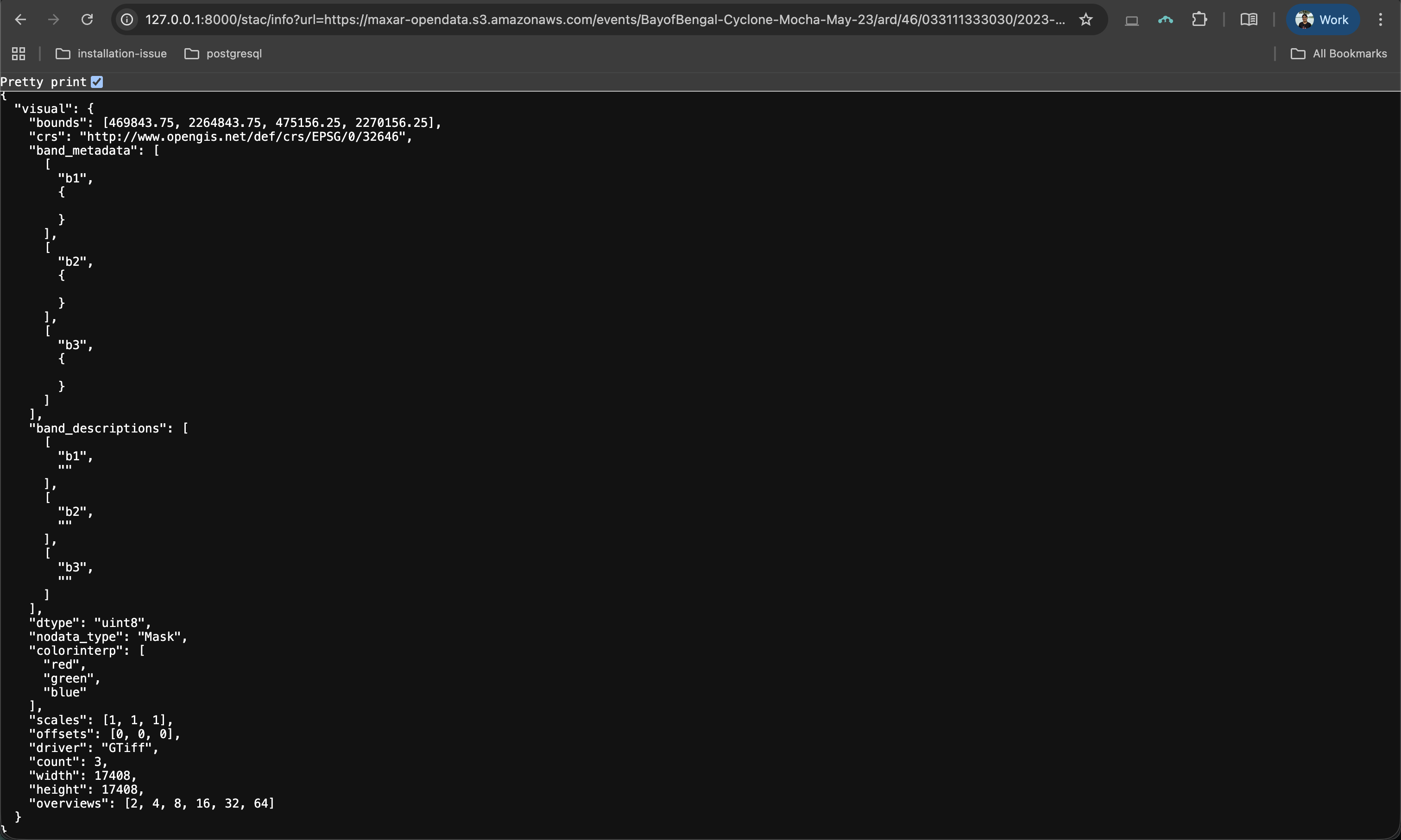

http://127.0.0.1:8000/stac/info?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=:all:

Note

assets=:all: special notation tells titiler to fetch info for all available asset

Info for Specific Asset

To get detailed information about a specific asset:

http://127.0.0.1:8000/stac/info?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=visual

---

2. Quick Preview: /stac/preview

The /stac/preview endpoint generates a downsampled image of your data - perfect for quick visualization.

Preview the Visual Asset (RGB)

http://127.0.0.1:8000/stac/preview?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=visual

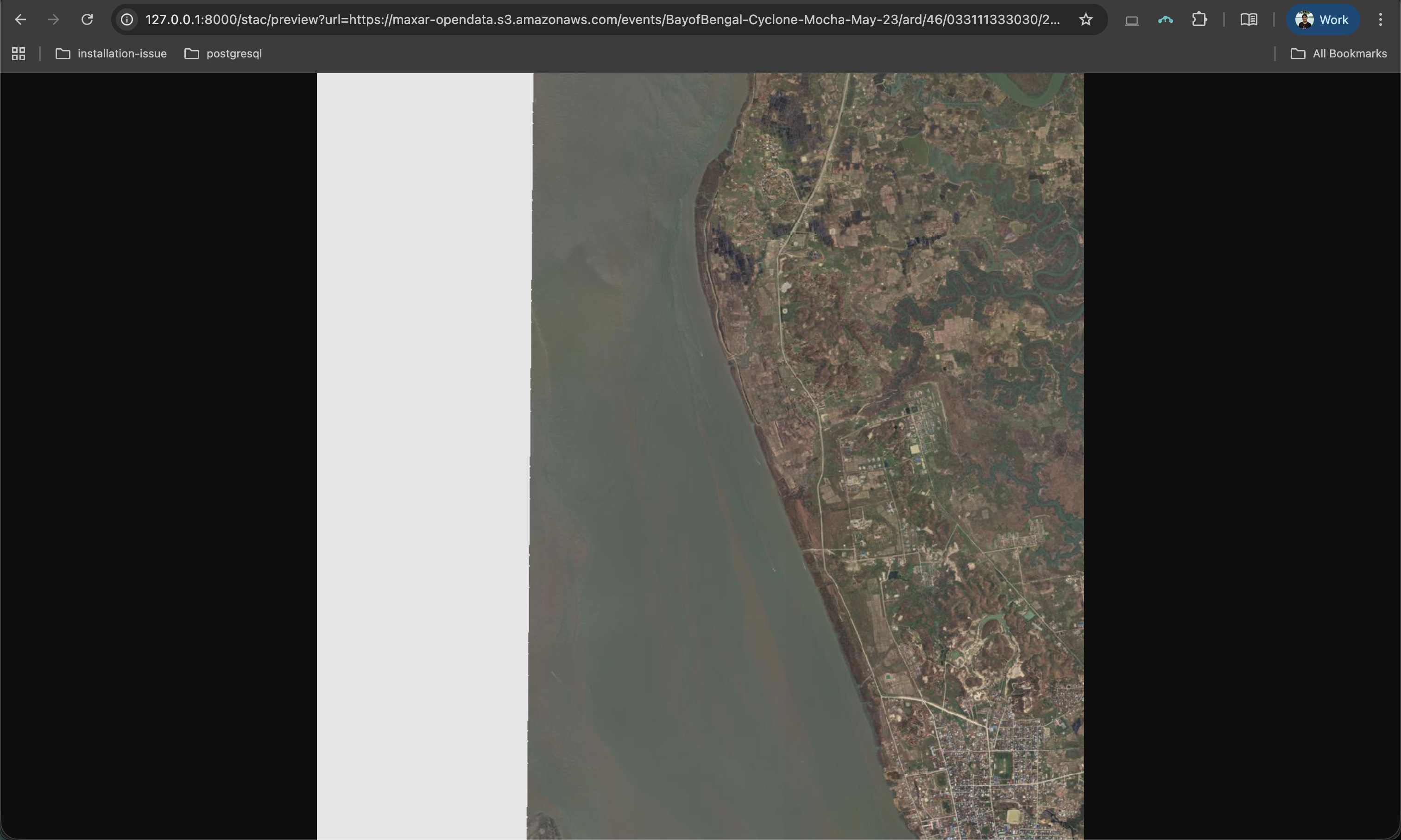

True Color visual asset:

Preview with Output Format

You can specify the output format:

# JPEG output (smaller file size)
http://127.0.0.1:8000/stac/preview.jpg?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=visual

# WebP output (modern format, good compression)
http://127.0.0.1:8000/stac/preview.webp?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=visual

---

3. Map Tiles: /stac/tiles/{tileMatrixSetId}/{z}/{x}/{y}

For web maps, you need tiles - small image pieces that load progressively as users pan and zoom. This is the most powerful endpoint for building interactive maps.

Finding Tile Coordinates (Z, X, Y)

To request a specific tile, you need to know its coordinates. You can calculate these from the STAC item's bounding box using the morecantile library.

Important: STAC items have two types of bounding boxes:

• bbox - Always in WGS84 (lon/lat) - use this for tile calculations
• proj:bbox - In the asset's projection (e.g., UTM meters) - don't use this directly

import httpx
import morecantile

# Fetch the STAC item
stac_url = "https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json"
item = httpx.get(stac_url).json()

# Get the WGS84 bbox (not proj:bbox!)
bbox = item["bbox"]  # [92.724, 20.481, 92.761, 20.530]

# Calculate center point
lon = (bbox[0] + bbox[2]) / 2  # 92.743
lat = (bbox[1] + bbox[3]) / 2  # 20.506
zoom = 15

# Load the WebMercatorQuad TileMatrixSet
tms = morecantile.tms.get("WebMercatorQuad")

# Get the tile containing this point
tile = tms.tile(lon, lat, zoom)
print(f"z={tile.z}, x={tile.x}, y={tile.y}")
# Output: z=15, x=24825, y=14476

Tip: Install morecantile with python -m pip install morecantile

Basic Tile Request

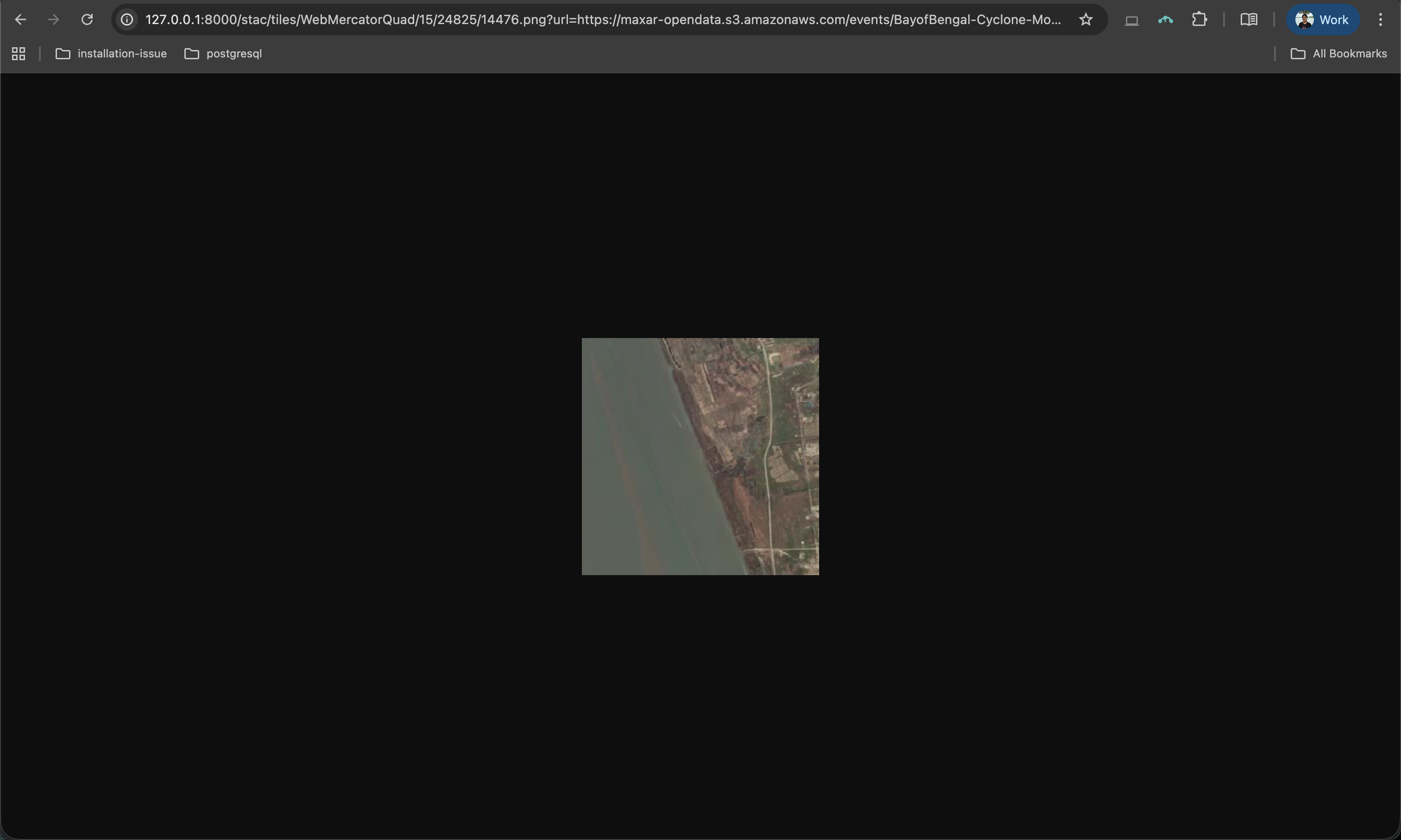

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=visual

URL breakdown:

• WebMercatorQuad: Standard web map projection (EPSG:3857)
• 15: Zoom level
• 24825: X tile coordinate
• 14476: Y tile coordinate
• .png: Output format

Using assets Parameter

The assets parameter specifies which asset(s) to render:

# Single asset (visual - RGB)
&assets=visual

# Multiple assets (for band combinations from different assets)
&assets=ms_analytic&assets=pan_analytic

Passing per Asset options using {name}|{options}={...}

When working with multi-band asset, you can extend the asset option to select specific bands or apply expression:

Note

Support of options in asset's name may depends on implementation. rio-tiler's STACReader supports both indexes= and expression=:

• Indexes: assets=ms_analytic|indexes=1,2,3
• Expression: assets=ms_analytic|expression=b1+b2

# Select band 3 (Green) from ms_analytic
http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic|indexes=3

Band indices for ms_analytic:

Index	Band Name	Common Name
1	BAND_C	Coastal
2	BAND_B	Blue
3	BAND_G	Green
4	BAND_Y	Yellow
5	BAND_R	Red
6	BAND_RE	Red Edge
7	BAND_N	NIR (Near Infrared)
8	BAND_N2	NIR2

Creating RGB Composites with {asset}|indexes={}

Create false-color composites by specifying 3 bands:

# Natural Color (Red, Green, Blue - bands 5,3,2)
&assets=ms_analytic|indexes=5,3,2

# False Color Infrared (NIR, Red, Green - bands 7,5,3)
&assets=ms_analytic|indexes=7,5,3

# Agriculture (NIR, Green, Blue - bands 7,3,2)
&assets=ms_analytic|indexes=7,3,2

Using rescale - Adjust Value Range

Important: Raw satellite data often has values outside the 0-255 display range. Without rescaling, images may appear black or washed out.

Tip: If your image appears black or too dark, try adjusting the rescale max value. Adjust based on your data min-max.

Full example - False Color Infrared with rescale:

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&asset_bidx=ms_analytic|7,5,3&rescale=0,2000

Using expression - Band Math

The expression parameter lets you perform calculations across bands. This is powerful for creating vegetation indices, water indices, and more.

Syntax: Bands are referenced as b{index} (e.g., b7 for NIR band in the ms_analytic asset).

Important

For STAC, the band index b{index} within an expression corresponds to the index of the resulting image created using multiple assets. If you combine two assets with 2 bands each, the resulting images will have 4 bands, thus an expression could accept b1 -> b4.

# select bands 1 & 2 for two assets and apply an expression
assets=visual|indexes=1,2&assets=ms_analytic|indexes=1,2&expression=(b1+b2+b3+b4)/4

Warning

The + sign in URLs is interpreted as a space! Use %2B instead of + in your expressions, otherwise you'll get a syntax error.

NDVI (Normalized Difference Vegetation Index)

NDVI highlights vegetation: (NIR - Red) / (NIR + Red)

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&expression=(b7-b5)/(b7%2Bb5)&rescale=-1,1

NDWI (Normalized Difference Water Index)

NDWI highlights water bodies: (Green - NIR) / (Green + NIR)

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&expression=(b3-b7)/(b3%2Bb7)&rescale=-1,1

Simple Band Ratio

# NIR/Red ratio (vegetation vigor)
&assets=ms_analytic&expression=b7/b5

Using colormap_name - Apply Color Palettes

When using expressions (which return single-band results), apply colormaps to make the data meaningful:

List of Available colormaps

NDVI with Colormap

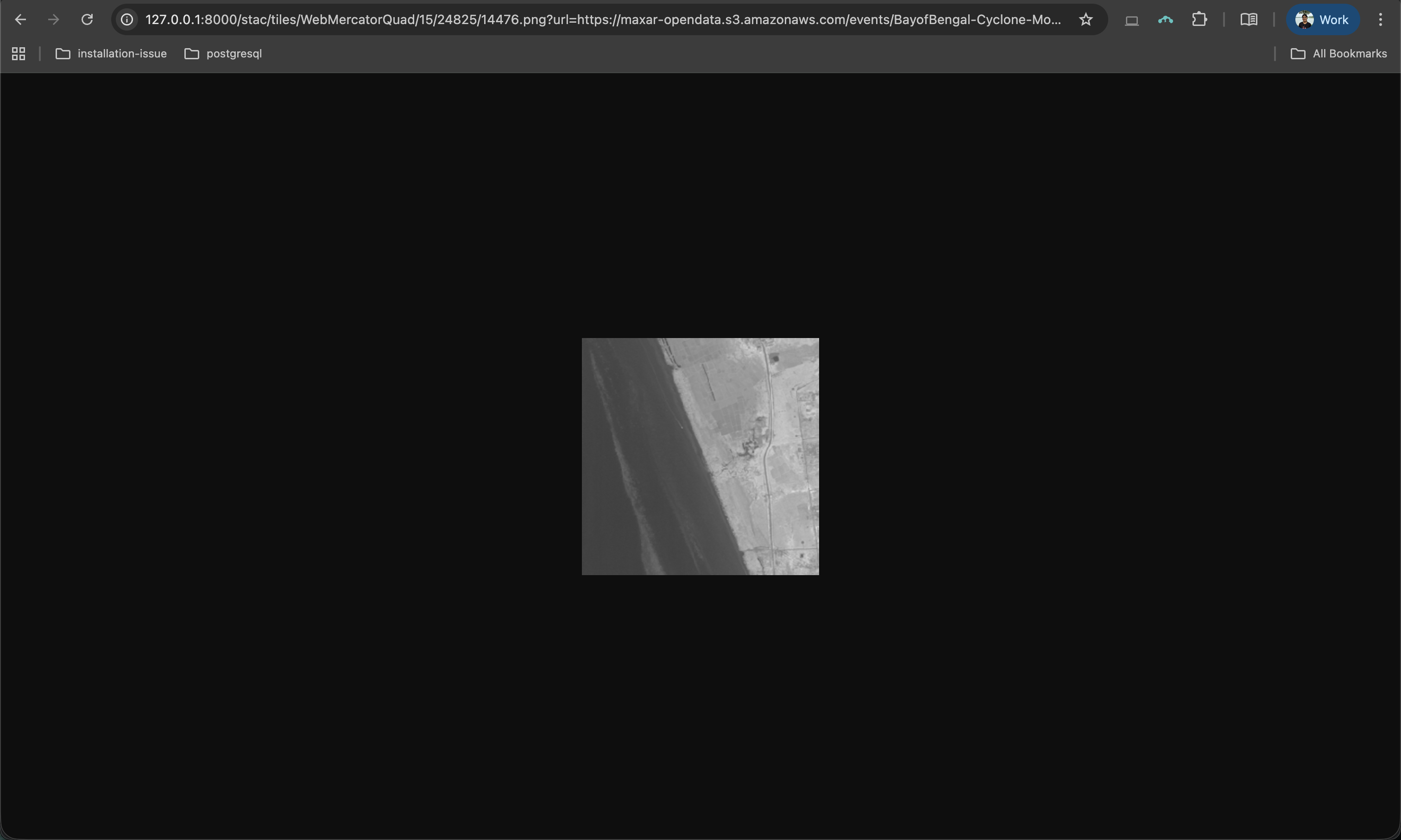

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&expression=(b7-b5)/(b7%2Bb5)&colormap_name=rdylgn&rescale=-1,1

• colormap_name=rdylgn: Red-Yellow-Green colormap (red=low NDVI, green=high NDVI)
• rescale=-1,1: NDVI values range from -1 to 1

Water Index with Blue Colormap

http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/15/24825/14476.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&expression=(b3-b7)/(b3%2Bb7)&colormap_name=blues&rescale=-1,1

Visualize at the Image Extent or Crop to Custom Bounds

NDVI on Image Extent

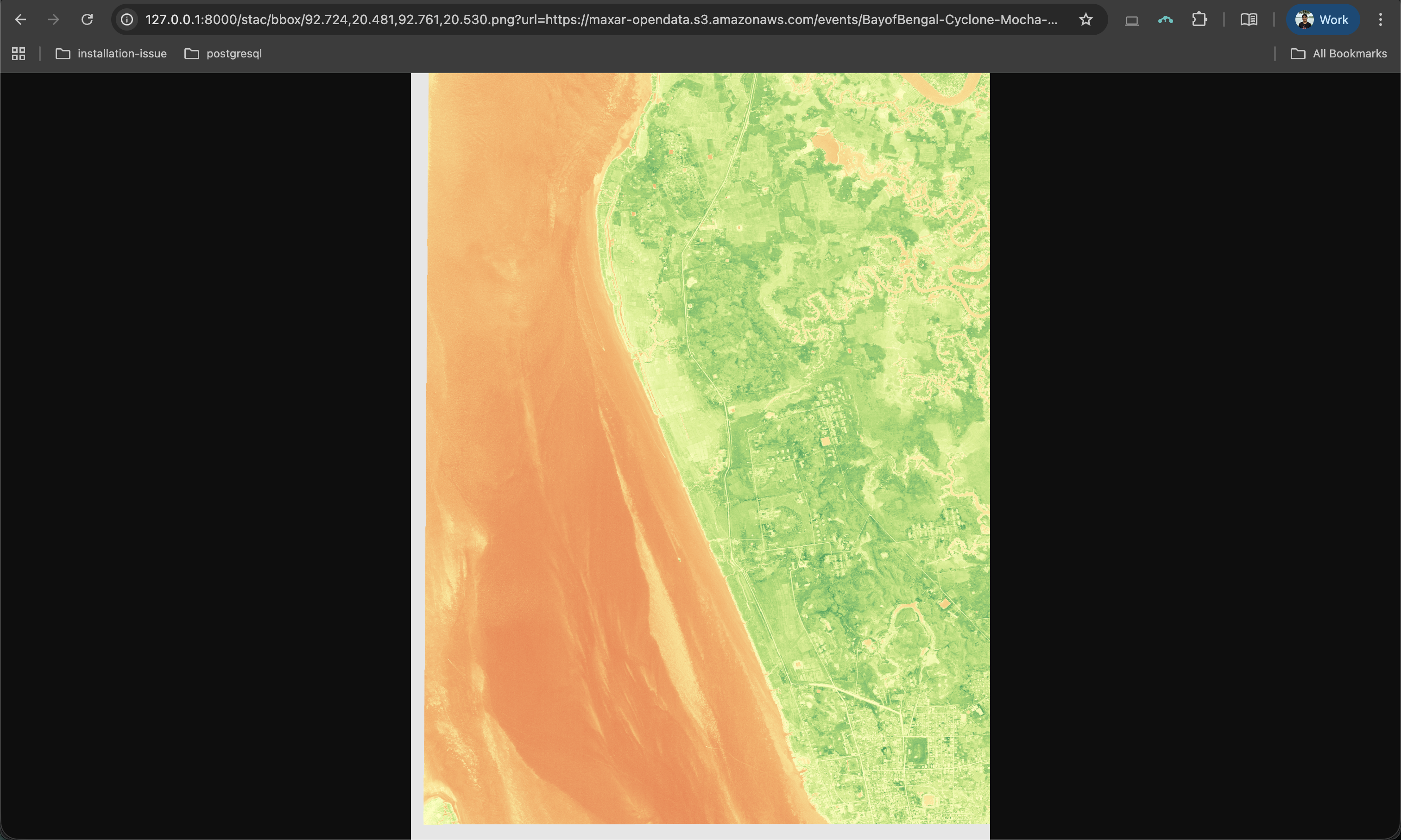

http://127.0.0.1:8000/stac/bbox/92.724,20.481,92.761,20.530.png?url=https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json&assets=ms_analytic&expression=(b7-b5)/(b7%2Bb5)&colormap_name=rdylgn&rescale=-1,1

URL breakdown:

• /stac/bbox/92.724,20.481,92.761,20.530.png - Bounding box: minLon,minLat,maxLon,maxLat
• Get these values from the STAC item's bbox field

---

Using with Leaflet

<!DOCTYPE html>
<html>
<head>
  <title>STAC + TiTiler Map</title>
  <link rel="stylesheet" href="https://unpkg.com/leaflet@1.9.4/dist/leaflet.css" />
  <script src="https://unpkg.com/leaflet@1.9.4/dist/leaflet.js"></script>
</head>
<body>
  <div id="map" style="width: 100%; height: 600px;"></div>
  <script>
    var map = L.map('map').setView([20.506, 92.743], 14);

    // Base map
    L.tileLayer('https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
      attribution: '&copy; OpenStreetMap'
    }).addTo(map);

    // TiTiler STAC layer
    var stacUrl = 'https://maxar-opendata.s3.amazonaws.com/events/BayofBengal-Cyclone-Mocha-May-23/ard/46/033111333030/2023-05-22/10300110E84B5A00.json';
    var tileUrl = `http://127.0.0.1:8000/stac/tiles/WebMercatorQuad/{z}/{x}/{y}.png?url=${encodeURIComponent(stacUrl)}&assets=visual`;

    L.tileLayer(tileUrl, {
      opacity: 0.8,
      maxZoom: 18
    }).addTo(map);
  </script>
</body>
</html>

To view the map:

1. Save the code as map.html
2. Make sure TiTiler server is running (uvicorn main:app --reload)
3. Open map.html in your browser (double-click or drag into browser)

Common Issues

Asset not found: Check asset names in the STAC item JSON - they're case-sensitive.

Black/white tiles: Your data values might be outside the default range. Use rescale to adjust.

Slow tiles: Large files take time. Consider using overviews or lower zoom levels for previews.

---

Created by Dimple Jain
