Introducing Async-GeoTIFF¶
We're introducing Async-GeoTIFF, a new high-level library for reading GeoTIFF and Cloud-Optimized GeoTIFF (COG) data. By leveraging asynchronous I/O, we can speed up concurrent GeoTIFF data fetching.
According to the 2025 GDAL user survey, almost 90% of respondents use GeoTIFFs and COGs as their primary raster data format. While GDAL and its Python bindings Rasterio are fantastic, rock-solid tools, they don't support asynchronous I/O and are missing some modern Python usability features, like type hinting.
We previously found concurrent GeoTIFF metadata parsing at scale to be 25x faster with the underlying Rust-based Async-TIFF library than with Rasterio. We expect Async-GeoTIFF to bring similar performance improvements to concurrent server-side image reading, improving downstream applications such as Titiler.
High-Level and Easy-to-Use¶
We can open up a GeoTIFF using the Obstore integration:
from async_geotiff import GeoTIFF
from obstore.store import S3Store
store = S3Store("sentinel-cogs", region="us-west-2", skip_signature=True)
path = "sentinel-s2-l2a-cogs/12/S/UF/2022/6/S2B_12SUF_20220609_0_L2A/TCI.tif"
geotiff = await GeoTIFF.open(path, store=store)
GeoTIFF instance you have metadata about the image, such as its affine transform, exposed as Affine objects, and Coordinate Reference System, exposed as PyProj CRS objects.
geotiff.transform
# Affine(10.0, 0.0, 300000.0,
# 0.0, -10.0, 4100040.0)
geotiff.crs
# <Projected CRS: EPSG:32612>
# Name: WGS 84 / UTM zone 12N
geotiff.nodata
# 0.0
For a COG, you can access the overviews, or reduced resolution versions, of the image:
# Overviews are ordered from finest to coarsest resolution
# In this case, access the second-coarsest resolution version of the image
overview = geotiff.overviews[-2]
Then we can read data from the image. This loads a 512-pixel square from the upper-left corner of the selected overview.
from async_geotiff import Window
window = Window(col_off=0, row_off=0, width=512, height=512)
array = await overview.read(window=window)
The read method returns an Array instance, which has fields including data, shape, mask, transform, and crs.
# The affine transform of the loaded array
array.transform
# Affine(79.97086671522214, 0.0, 300000.0,
# 0.0, -79.97086671522214, 4100040.0)
The .data attribute is a 3D NumPy array, with rasterio axis ordering (bands, height, width).
array.data
# array([[[217, 245, 255, ..., 0, 0, 0],
# [230, 244, 255, ..., 0, 0, 0],
# [251, 254, 255, ..., 0, 0, 0],
# ...,
# [245, 239, 244, ..., 0, 0, 0],
# [243, 236, 239, ..., 0, 0, 0],
# [246, 245, 245, ..., 0, 0, 0]],
# [[135, 170, 229, ..., 0, 0, 0],
# [149, 180, 239, ..., 0, 0, 0],
# [192, 234, 252, ..., 0, 0, 0],
# ...,
# [183, 174, 179, ..., 0, 0, 0],
# [179, 171, 170, ..., 0, 0, 0],
# [191, 182, 180, ..., 0, 0, 0]]],
# shape=(3, 512, 512), dtype=uint8)
Or we can create a NumPy MaskedArray with the as_masked method:
array.as_masked()
# masked_array(
# data=[[[217, 245, 255, ..., --, --, --],
# [230, 244, 255, ..., --, --, --],
# [251, 254, 255, ..., --, --, --],
# ...,
# [245, 239, 244, ..., --, --, --],
# [243, 236, 239, ..., --, --, --],
# [246, 245, 245, ..., --, --, --]],
# [[135, 170, 229, ..., --, --, --],
# [149, 180, 239, ..., --, --, --],
# [192, 234, 252, ..., --, --, --],
# ...,
# [183, 174, 179, ..., --, --, --],
# [179, 171, 170, ..., --, --, --],
# [191, 182, 180, ..., --, --, --]]],
# mask=[[[False, False, False, ..., True, True, True],
# [False, False, False, ..., True, True, True],
# [False, False, False, ..., True, True, True],
# ...,
# [False, False, False, ..., True, True, True],
# [False, False, False, ..., True, True, True],
# [False, False, False, ..., True, True, True]]],
# fill_value=0,
# dtype=uint8)

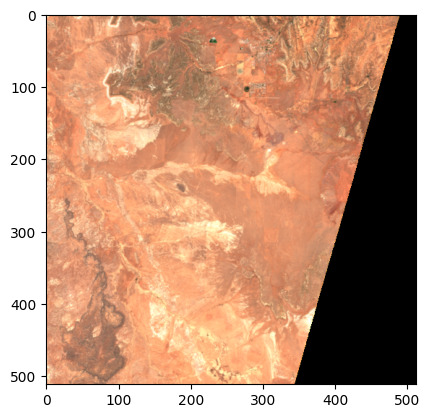

This should integrate cleanly into existing tools. For example, we can plot using rasterio.plot.show:
import rasterio.plot
rasterio.plot.show(array.data)
TileMatrixSet integration with Morecantile¶
With the Morecantile integration, we can create a TileMatrixSet representation of the internal COG tiles. This is useful for applications that want to traverse the internal COG tile pyramid structure.
from async_geotiff.tms import generate_tms
generate_tms(geotiff)
{
"crs": {"uri": "http://www.opengis.net/def/crs/EPSG/0/32612"},
"boundingBox": {
"lowerLeft": [300000.0, 3990240.0],
"upperRight": [409800.0, 4100040.0],
"crs": {"uri": "http://www.opengis.net/def/crs/EPSG/0/32612"}
},
"tileMatrices": [
{
"id": "0",
"scaleDenominator": 570804.741110418,
"cellSize": 159.82532751091702,
"cornerOfOrigin": "topLeft",
"pointOfOrigin": [300000.0, 4100040.0],
"tileWidth": 1024,
"tileHeight": 1024,
"matrixWidth": 1,
"matrixHeight": 1
},
{
"id": "1",
"scaleDenominator": 285610.23826865054,
"cellSize": 79.97086671522214,
"cornerOfOrigin": "topLeft",
"pointOfOrigin": [300000.0, 4100040.0],
"tileWidth": 1024,
"tileHeight": 1024,
"matrixWidth": 2,
"matrixHeight": 2
},
...
]
}
Performance-focused¶
Rust core¶
The underlying Async-TIFF library is written in Rust, a fast, low-level language that compiles to native machine code. This means Async-TIFF and Async-GeoTIFF can be just as fast as any C or C++ library. Rust is memory efficient and its compiler automatically catches many memory bugs.
Multithreaded image decoding by default¶
With asynchronous I/O, it's important to ensure that no blocking tasks happen on the primary executor, because those blocking tasks prevent any other asynchronous tasks from responding.
Async-GeoTIFF splits up the I/O-bound network data fetching and CPU-bound image decoding, ensuring any decoding is done in a Rust-based thread pool, leaving the executor responsive.
Async-GeoTIFF is thread-safe, though you shouldn't usually need to use it with a Python thread pool, as it's already using a Rust thread pool under the hood.
Efficient memory usage¶
The underlying Async-TIFF library implements the Python Buffer Protocol, ensuring that we can share array data between Rust and NumPy without copies.
Read GeoTIFFs / COGs from any source¶
Fast cloud storage access with Obstore¶
Obstore is a high-throughput Python interface to Amazon S3, Google Cloud Storage, Azure Storage, & other S3-compliant APIs, powered by a Rust core.
Async-GeoTIFF supports Obstore instances out of the box. Just create a store and pass it to GeoTIFF.open.
from async_geotiff import GeoTIFF
from obstore.store import S3Store
store = S3Store("sentinel-cogs", region="us-west-2", skip_signature=True)
path = "sentinel-s2-l2a-cogs/12/S/UF/2022/6/S2B_12SUF_20220609_0_L2A/TCI.tif"
geotiff = await GeoTIFF.open(path, store=store)
Generic backend support with obspec¶
Async-GeoTIFF supports reading from arbitrary Obspec backends. Obspec defines a set of Python protocols for generically accessing data from object storage-like resources.
This means you can easily read GeoTIFF data from any source, as long as you define two simple methods:
class MyBackend:
async def get_range_async(
self,
path: str,
*,
start: int,
end: int | None = None,
length: int | None = None,
) -> Buffer:
"""Return the bytes in the given byte range."""
...
async def get_ranges_async(
self,
path: str,
*,
starts: Sequence[int],
ends: Sequence[int] | None = None,
lengths: Sequence[int] | None = None,
) -> Sequence[Buffer]:
"""Return the bytes in the given byte ranges."""
...
Then just pass an instance of your backend into GeoTIFF.open.
from async_geotiff import GeoTIFF
from obstore.store import S3Store
backend = MyBackend()
geotiff = await GeoTIFF.open("path/in/backend.tif", store=backend)
Read the obspec release post for more information.
More tractable data caching¶
GDAL provides a block cache per file handle opened. The block cache persists chunks of bytes in memory that have already been read over the network, so that if a later request requires some of those same bytes, a smaller network request to the source is required.
However GDAL's block cache is entirely a black box at the Python level. Rasterio is unable to access it, and the end user is unable to see how much data the cache is using. Similarly, the Python user can't change core cache behavior, aside from a few configuration settings.
Through Async-GeoTIFF's Obspec integration, we expect to have composable caching layers available to any tool relying on Obspec, including Async-GeoTIFF. We're currently experimenting with ideas in the obspec-utils repository, but the basic idea is
from __future__ import annotations
from typing_extensions import Buffer
from typing import Protocol
from obspec import GetRangeAsync, GetRangesAsync
class FetchClientProtocol(GetRange, GetRangesAsync, Protocol):
"""A new type wrapper for classes that implement both `GetRange` and
`GetRangesAsync`.
"""
...
class SimpleCache(GetRange, GetRangesAsync):
"""A simple cache for range requests that never evicts data."""
def __init__(self, client: GetRange):
self.client = client
self.cache: dict[tuple[str, int, int | None, int | None], Buffer] = {}
async def get_range_async(
self,
path: str,
*,
start: int,
end: int | None = None,
length: int | None = None,
) -> Buffer:
cache_key = (path, start, end, length)
if cache_key in self.cache:
return self.cache[cache_key]
response = await self.client.get_range_async(
path,
start=start,
end=end,
length=length,
)
self.cache[cache_key] = response
return response
async def get_ranges_async(
self,
path: str,
*,
starts: Sequence[int],
ends: Sequence[int] | None = None,
lengths: Sequence[int] | None = None,
) -> Sequence[Buffer]:
# This is meant as pseudocode; a real implementation would check each
# range against the cache and merge ranges if possible, so as few
# requests as possible are made to the actual source
results = []
for (start, end) in zip(starts, ends):
results.append(self.get_range_async(path=path, start=start, end=end))
return results
Now a user could easily choose to add the caching layer as a middleware:
from obstore.store import S3Store
from async_geotiff import GeoTIFF
store = S3Store("bucket")
caching_wrapper = SimpleCache(store)
geotiff = await GeoTIFF.open("path/to/image.tif", store=caching_wrapper)
The user has full access to the caching_wrapper instance as well, if they want to inspect how much memory it's using or log what requests are made.
Read the obspec release post for more information.
Full type hinting¶
The entire Async-GeoTIFF API is type-hinted as well as possible, leading to effective IDE integration.
Growing test suite¶
We recently created geotiff-test-data, a repository to hold various sorts of GeoTIFF test files. This repo can then be used as a submodule to provide test fixtures for various repositories like Async-GeoTIFF and deck.gl-raster without growing the disk size of the primary Git repository.
The majority of these test files are written using Rasterio
Future work¶
rio-tiler integration¶
rio-tiler is a foundational library for accessing raster data for tiled web maps. And Titiler, a Development Seed project for dynamic server-side raster tile generation, is built largely on the backs of rio-tiler. The first step of integrating Async-GeoTIFF into the Titiler ecosystem will be adding support to rio-tiler.
Better API for handling photometric interpretations¶
Currently Async-GeoTIFF doesn't decode data out of RGB color spaces like YCbCr, which doesn't match Rasterio's handling. We may add an API like Array.to_rgb to offer explicit conversion to an RGB color space.
More compression support¶
We should support additional compressions like LERC and JPEG XL.
